State of the art design delivers special standard features:

Polyurethane Drive Train

• Eliminates the need to load coil prior to transportation (less material waste)
• Roll form 24-gauge steel.
• Eliminates slippage from cold weather and condensation.

.002 Chrome Plated Steel Forming Rollers

• Roll forms all standard metals with minimal or no adjustment.
• Free-floating forming rollers produce less pressure and allow for more product uniformity.

Electrical and Control System

• Speed: 45 feet per minute.
• Entrance and exit control selector switch jog run.
• 3/4 HP, 110 Volt, Single Phase Motor, 13.6 Ampere

Structural Steel Frame

• Welded steel frame

Modular Turn style Upright System

Specifications:

Power:

3/4 HP, 110 V. Single Phase 13.6 amperes totally enclosed fan cooled (T.E.F.C) motor.

Dimensions:

Length - 95 1/2"
Height - 48"
Width - 24"

Weight:

Approximately 950 lbs.

Drive:

Powered polyurethane drive rollers via chains and sprockets.

Shear:

Guillotine style shear.

Speed:

Approximately 45 feet per minute.

Controls:

Push button entry and exit end manual controls with "jog" feature and optional G.F.C.I. wiring.

Recommended Materials:

11 3/4" to 12 3/8" wide

Color coded adjustment stations

Front pull guillotine

Options:

• Additional run out support stands
• Ground-Fault Protection (G.F.C.I.)
• 220 volt/50 Hz.

• Additional turn styles
• Additional spools
• Alcoa style hook

Pricing:

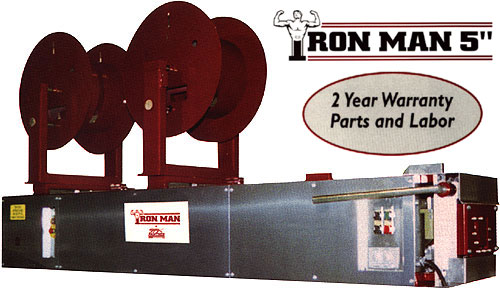

IRON MAN 5" - Includes turn style upright, two spools, front pull guillotine, push button controls and two run out stands.

 $7,300.00

Base Machine

$5,568.00

Alcoa Style Hook

$1,250.00

Front Pull Guillotine Push Button Controls

$504.00

Adjustable Width Single Spool

$196.00

Cradle

$456.00

Run-out Stands

$98.00

Coil Transfer Bar Set

$160.00

Single Turn style Upright

$276.00

$276.00

$820.00

Machine Mount Cradle

$486.00
