Standard Equipment:

• Straight blade guillotine
• Seven station aluminum box
• Emergency shutdown switch
• Easy adjust entrance guides
• Two quick release run out stands

Standard Upright System:

• 2 spool upright & 1 steel spool
• Weight distributing upright system distributes the weight of the coils to the floor of the vehicle, not the machine

Specifications:

Power:

3/4 HP, 110 V. Single Phase 13.6 amperes. Machine plugs directly into 110-120V outlet

Dimensions:

Top of spools to bottom of machine 46"
23" wide. Length 96" with standard cut-off. 99" with front pull guillotine.

Weight:

Approximately 1,200 lbs.

Drive/Forming Rollers:

Twelve drive forming rollers - 7 bottoms, 5 tops. Rollers are 1045 steel plated, .002 industrial hard-chrome.

Construction:

3/8" steel frame welded on a jig fixture for accuracy. Fully enclosed with 7 gauge steel sides. All parts individually painted prior to assembly.

Production:

Approximately 35 feet per minute.

Recommended Materials:

11 3/4" to 12 3/8" wide

Front pull guillotine

New easy-adjust entrance guides

Options:

• Front pull guillotine (shown above)
• Push button controls (shown above)
• Additional run out support stands

• 220 volt/50 Hz.
• Single, double, or triple spool upright available
• Machine mount cradle

Pricing:

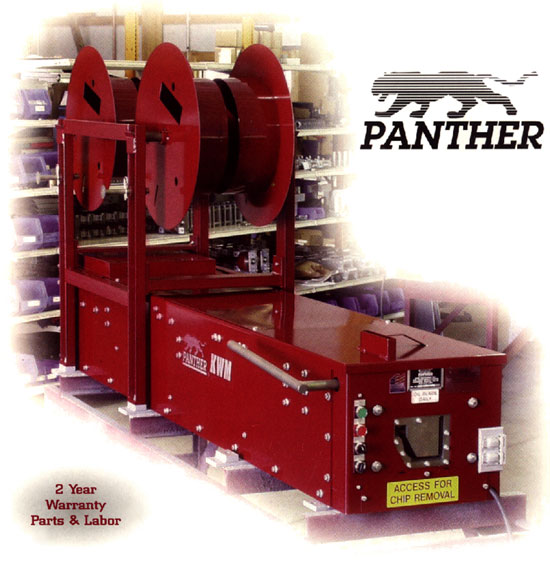

PANTHER 5" - Includes double-upright, double spool,  front pull guillotine and two run out stands.

$6,700.00

Base Machine

$5,393.00

Triple upright, three spools

$846.00

Triple upright, one spool

$454.00

Front Pull Guillotine (includes push button controls CE)

$504.00

Double Upright, two spool

$564.00

Double Upright, single spool

$368.00

Triple Upright, double spool

$650.00

Machine Mount Cradle

$456.00

Run-out Stands

$98.00

Single Upright, one spool

$282.00

Spool

$196.00

$86.00
